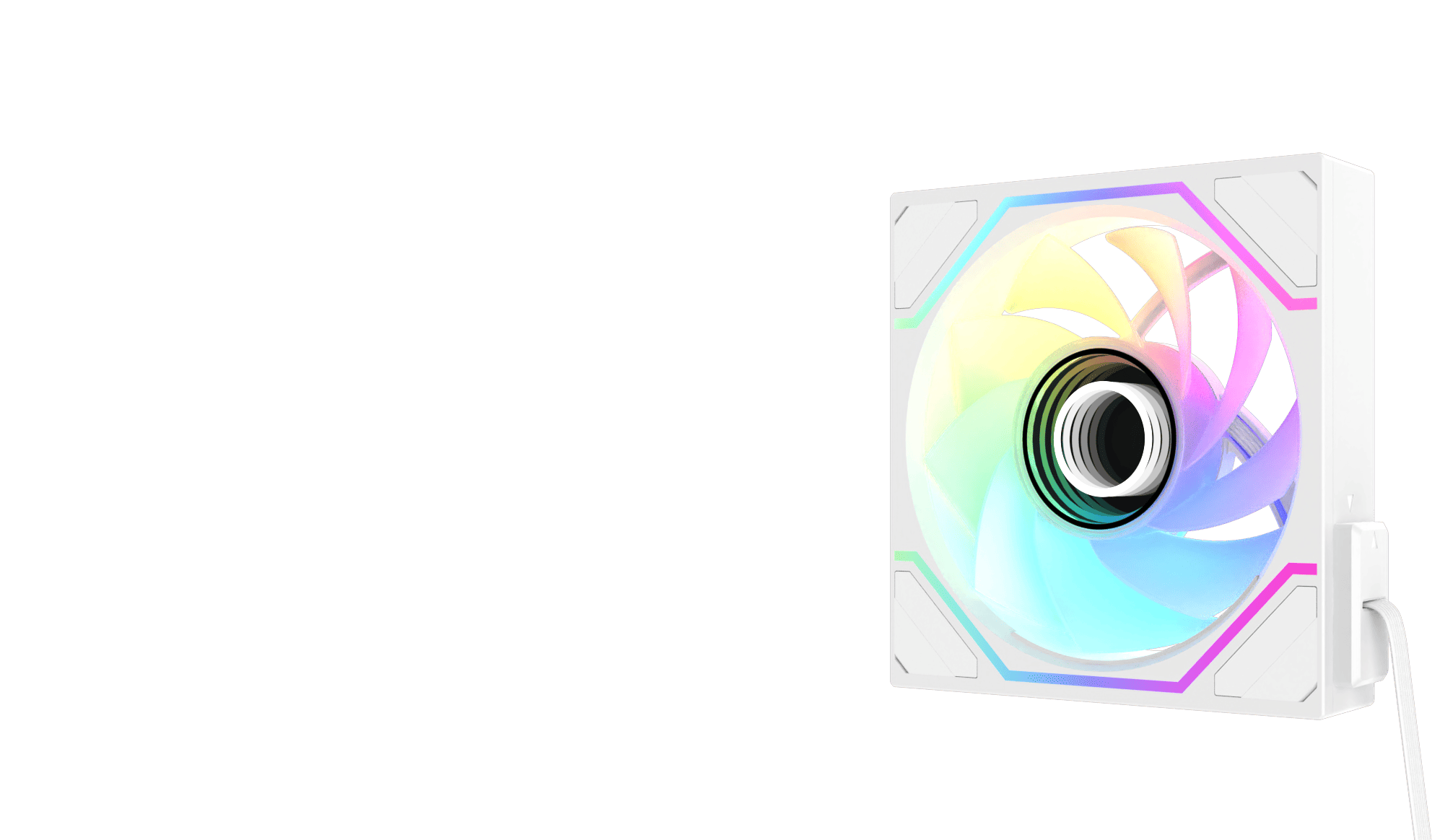

Swap the Fan Blades as You Like
Simply pop out the fan blades, switch up the blades and press them back in!
SWAFAN 120 EX INFINITY ARGB Sync PC Cooling Fan - Snow (3-Fan Pack)
สินค้าหมด
P/N
CL-F254-PL12SW-A
USD$99,999.00
SWAFAN 120 EX INFINITY Snow is designed with Dual Infinity Mirror Lighting, reflecting two rings for breathtaking visual effects. Inheriting from the SWAFAN EX series, it features a Swappable Fan Blade Design and MAGForce 2.0 Quick Connection Design, fully presenting lighting in different airflow directions while minimizing cable clutter. Taking the fan’s aesthetic to the next level, the Hidden Screw Design conceals corner screws, providing a smooth surface that makes your lighting stand out.
SWAFAN EX INFINITY
Double the Glow, Unleash True Infinity

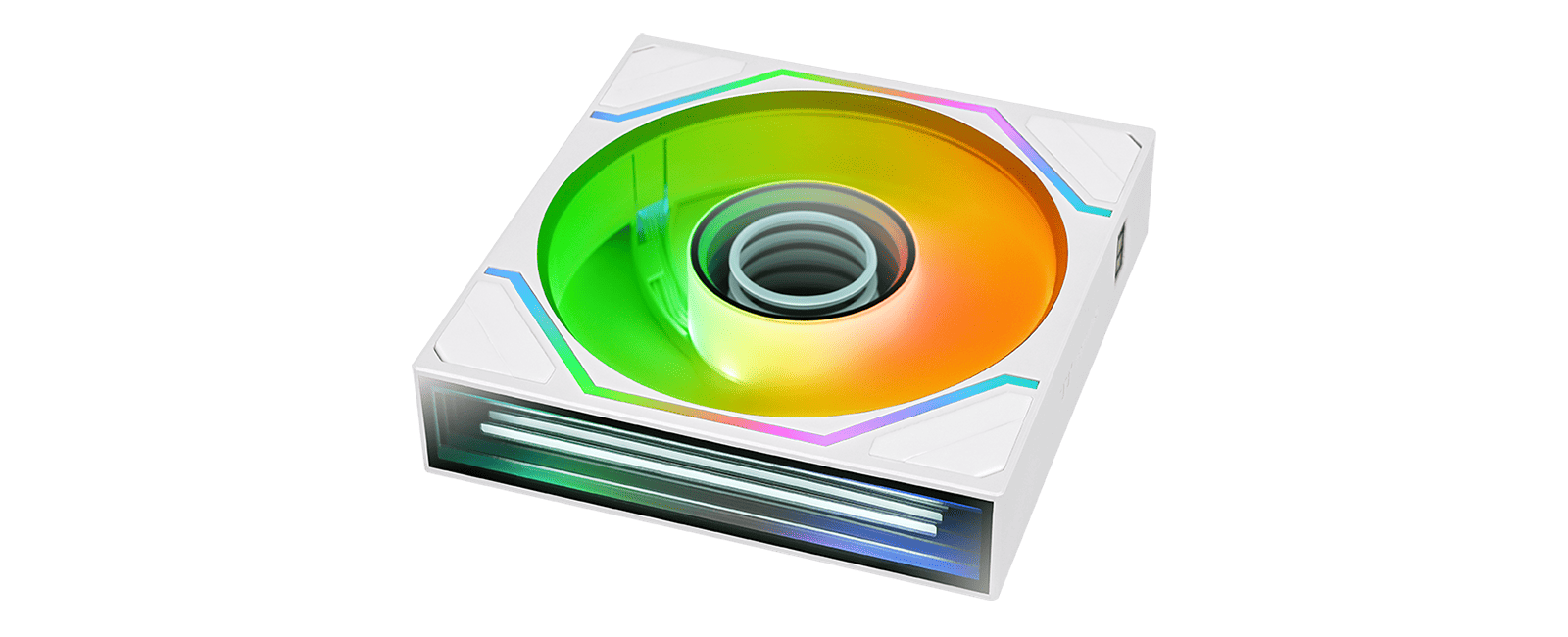

Beyond Ordinary: Dual Infinity Mirror Lighting
The SWAFAN EX INFINITY Snow showcases innovative Dual Infinity Mirror Lighting, featured on the fan hub and two non-connection sides of the frame. Reimagining the infinity mirror, this design combines a fixed white inner ring with a fully customizable ARGB outer ring, delivering richer layers in a single view. Let your build shine with a stylish white core and ARGB lighting in your favorite colors, drawing attention from every angle.
Unlocks the Full Potential of ARGB Lighting
With the Swappable Fan Blade Design, the SWAFAN EX INFINITY Snow (3-Fan Pack) incorporates three standard blades and reversed blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!
Standard Blade
Reverse Blade
The Ultimate Cooling Performance of an ARGB Fan
To achieve optimal cooling efficiency for high-performance systems, the SWAFAN 120 EX INFINITY Snow has a maximum operating speed of 2000 RPM.
Click to see different airflow directions:

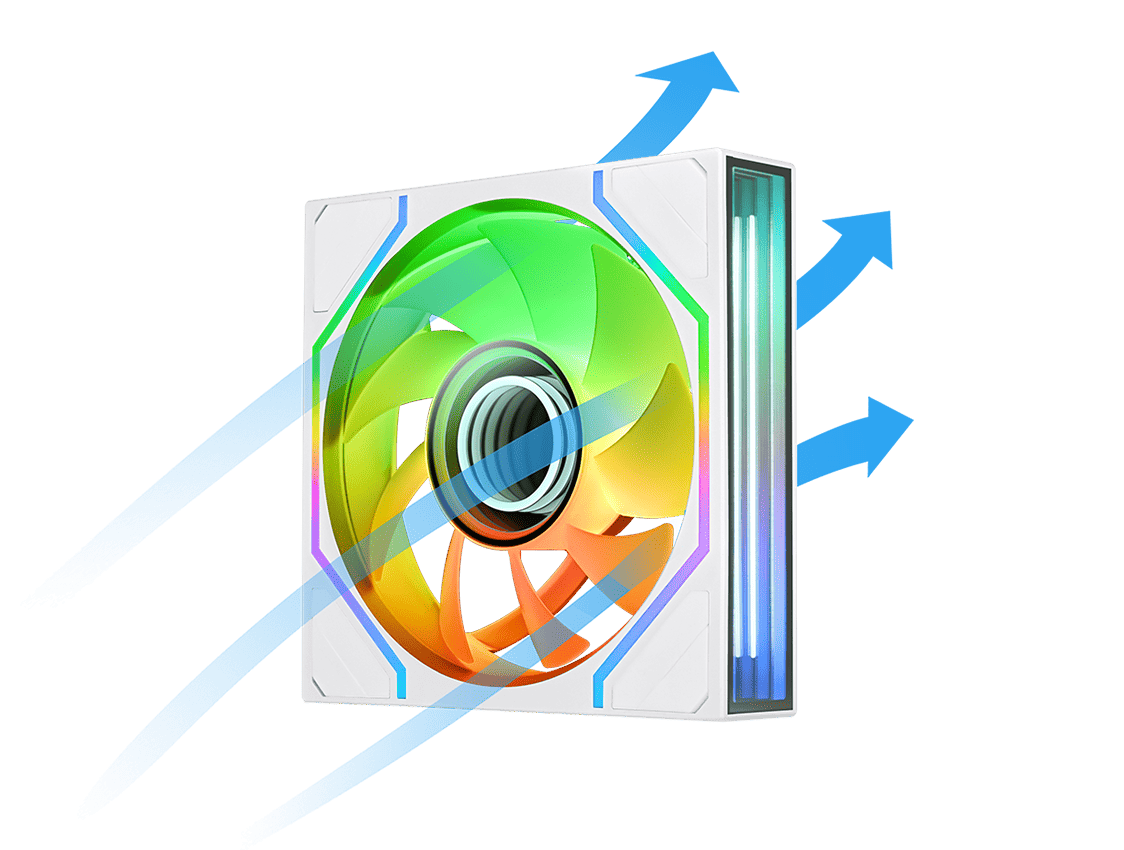

Standard Fan Blades can provide a static pressure of 2.86 mm-H2O (Max)
and 58.13 CFM (Max) airflow while maintaining under 30 dB-A noise level and can bring
air from
the front to the back.

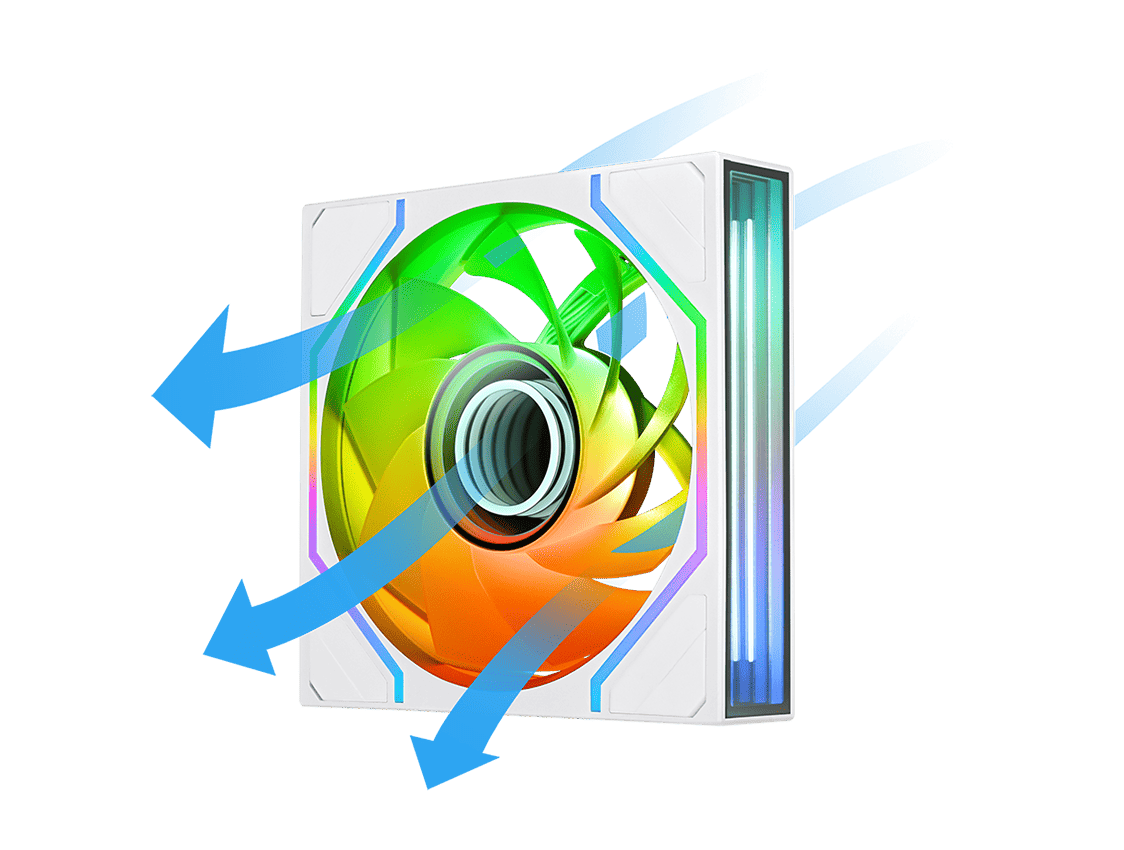

Reverse Fan Blades can provide a static pressure of 2.23 mm-H2O (Max)
and 56.15 CFM (Max) airflow while maintaining under 32 dB-A noise level and can bring
air from
the back to the front.
Air Exhaust
Air Intake
Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with SWAFAN EX INFINITY Snow’s MagForce 2.0 Quick Connect Design and be free from messy cables!

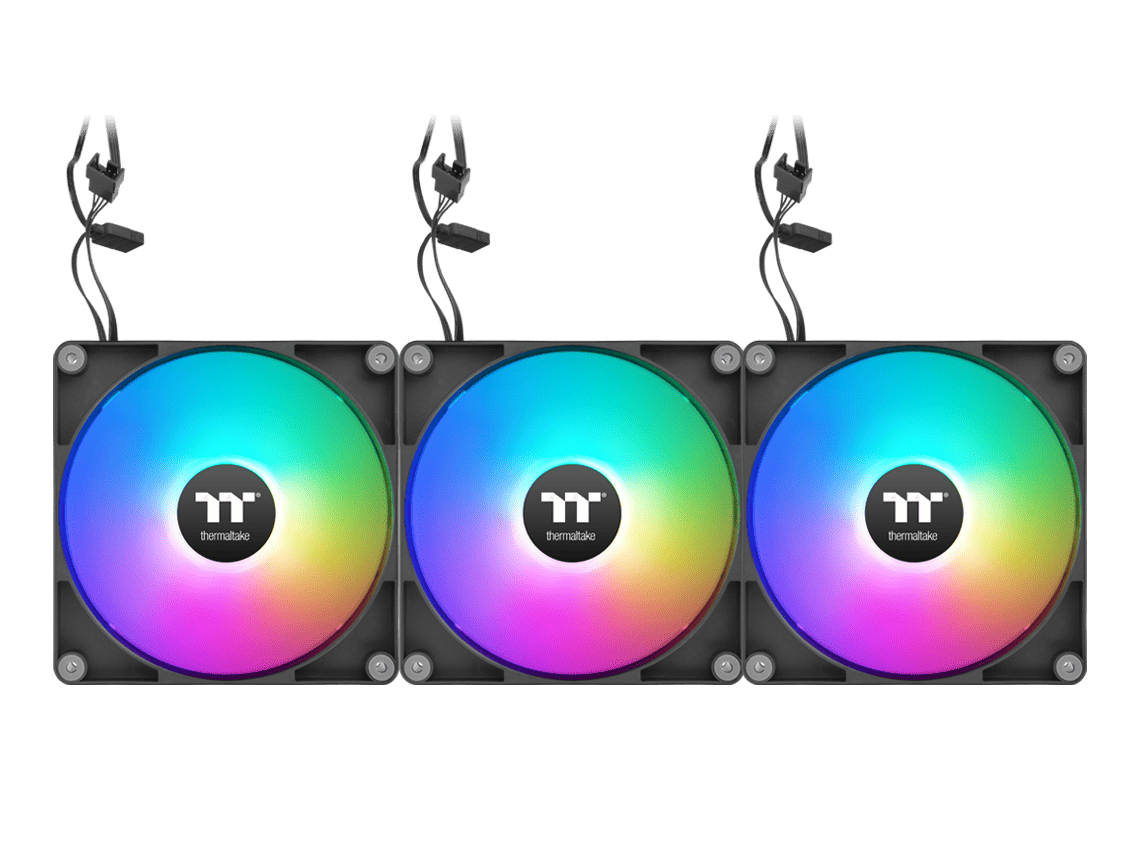

Ordinary Fans
VS

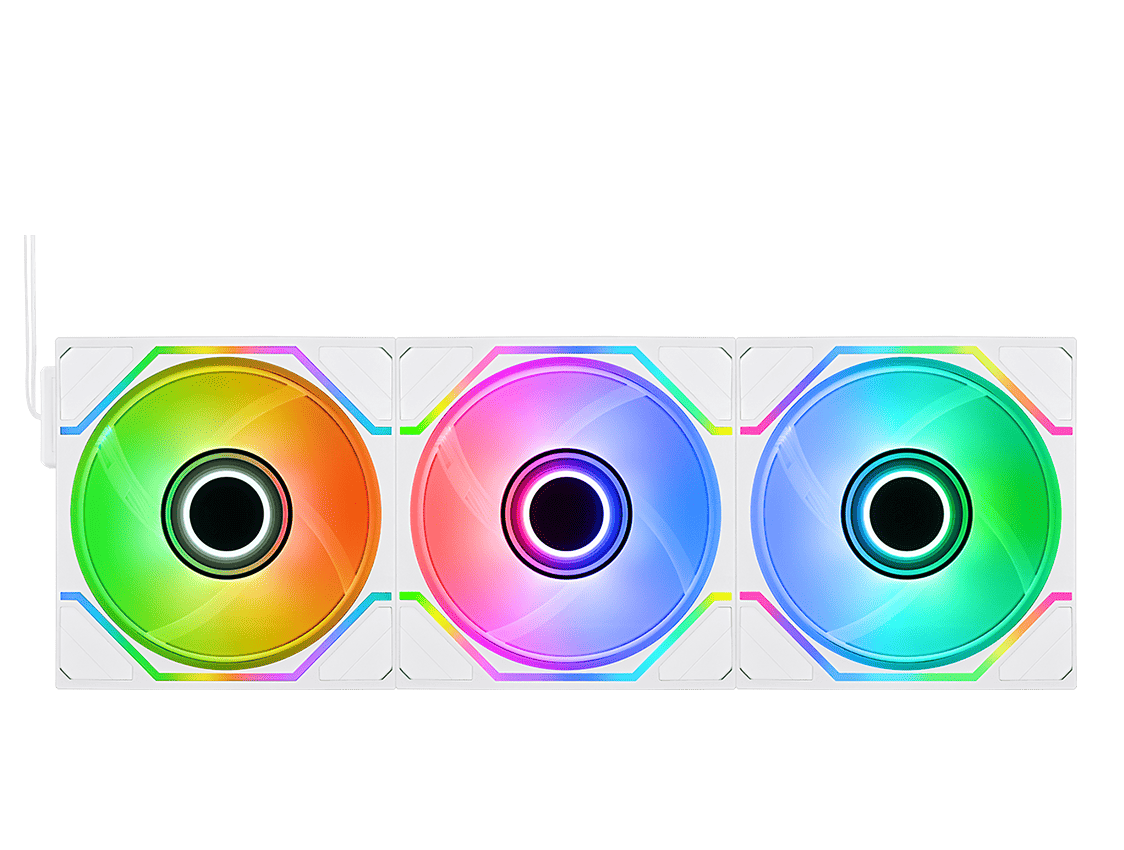

SWAFAN EX INFINITY Snow

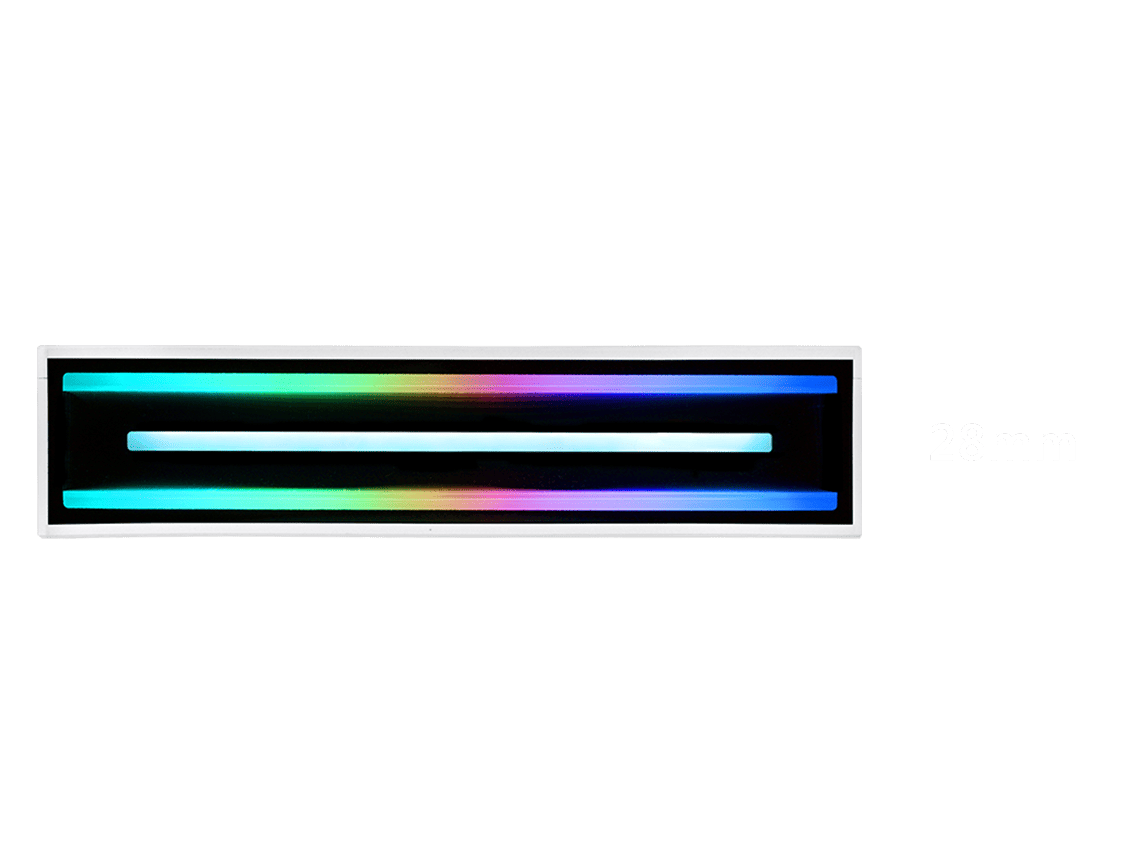

28 mm Thickness for Enhanced Cooling
Compared to conventional 25 mm frames, the SWAFAN EX INFINITY Snow features a 28 mm-thick fan body that improves airflow and static pressure. The added depth also provides more space to highlight the Dual Infinity Mirror Light, delivering both stronger cooling performance and a bolder visual presence.

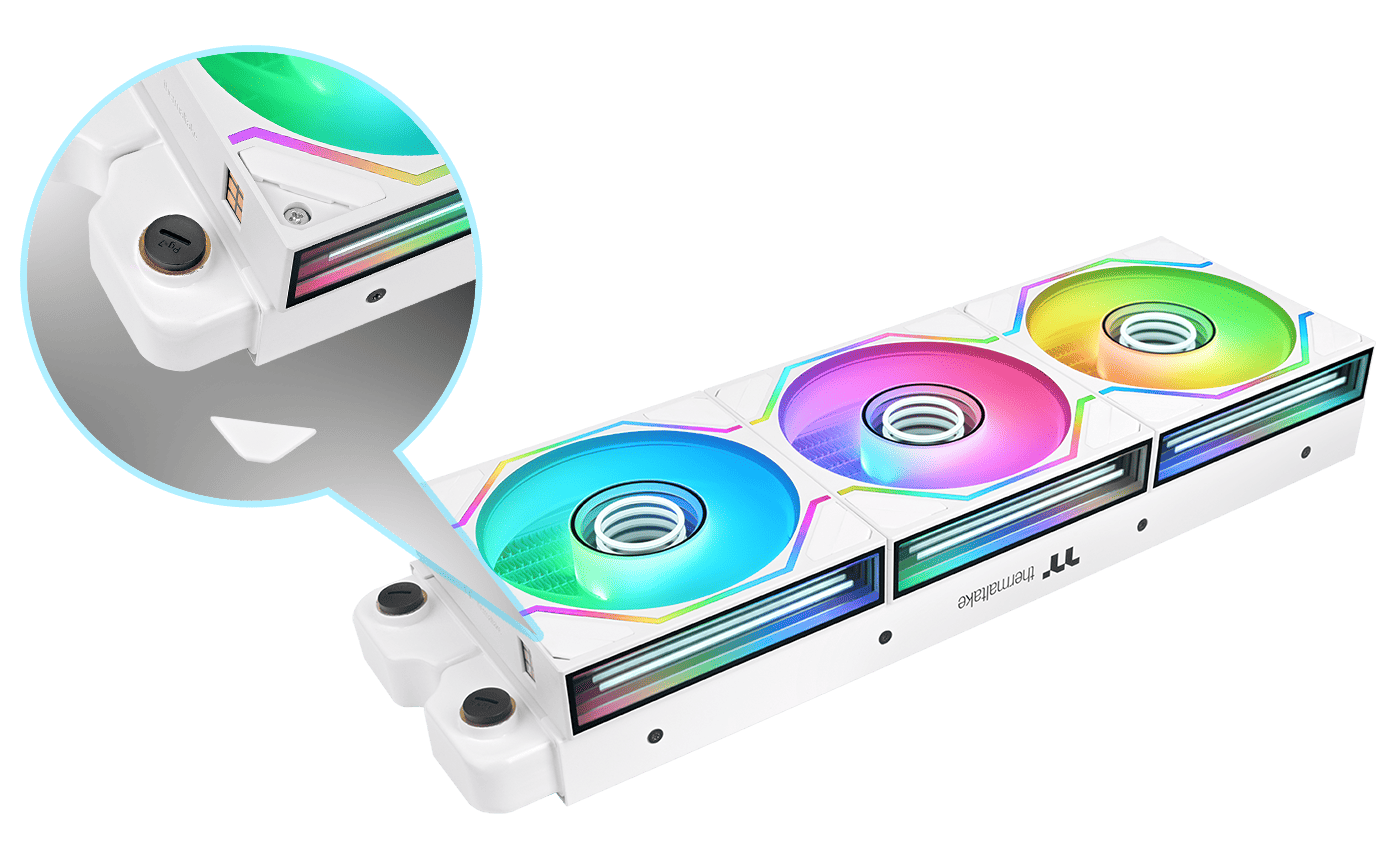

Hidden Screw Design for a Sleek Appearance
Keep your build clean with the Hidden Screw Design. Cleverly hiding the mounting screws with specially designed rubber pads, it creates a smooth surface that enables your ARGB lighting take the spotlight.

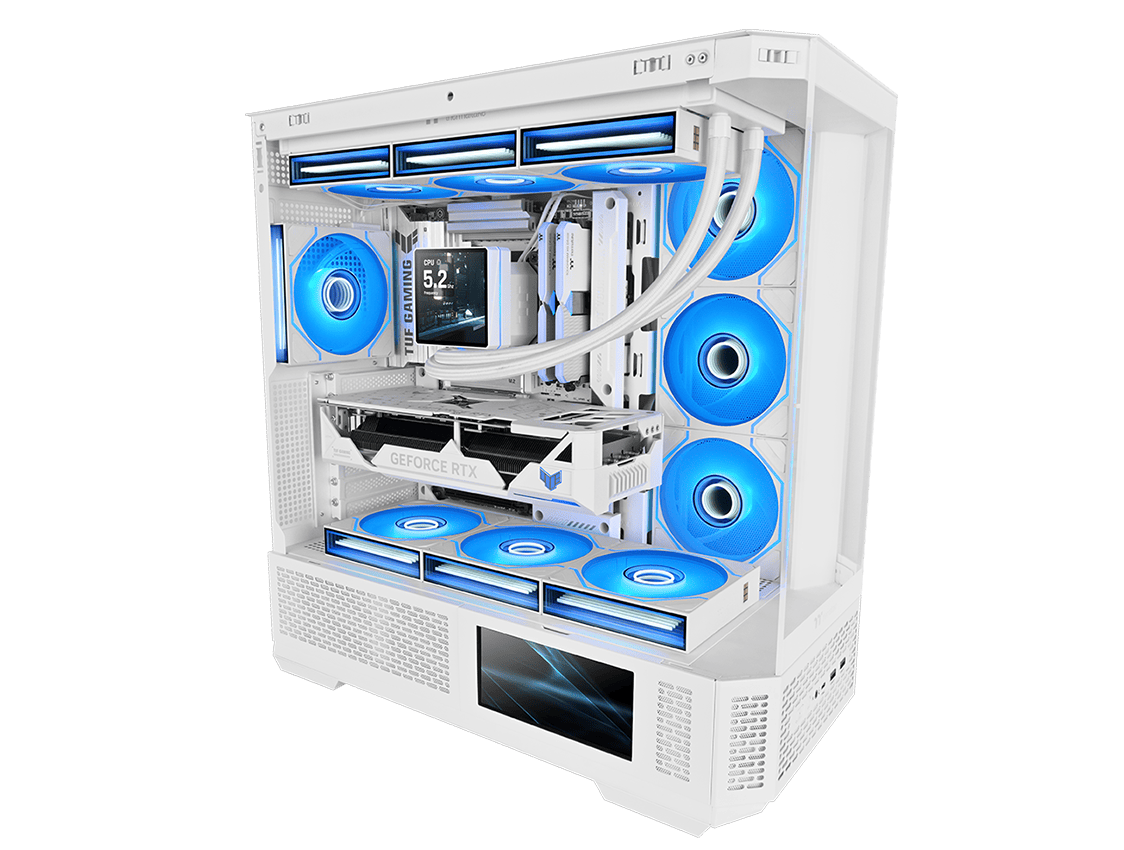

Spectacular Lighting Effects
Light up your system with stunning lighting effects through 5V motherboard sync software, providing great coverage of 16.8 million colors. The SWAFAN EX INFINITY Snow supports ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software. Immerse your build in vibrant illumination.
Cleaning Fans are Now Easy and Fun!
Pop and insert, it is that easy.
If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly
and apply the bearing lubricant that is included in the package if needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CL-F254-PL12SW-A |
|---|---|
| Fan Dimension | 124 x 120 x 28 mm |
| Interface | 2510-4 Pin / 5V ARGB header-3 Pin |
| Fan Started Voltage | 6 V |
| Fan Rated Voltage | 12 V &5V |
| Rated Current | 12V: 0.3.A / 5V: 0.8A (one fan) |
| Power Input | 12V: 3.6 W / 5V: 4 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Air Pressure |
Standard Fan Blade:2.86 mm-H2O (one fan) Reverse Fan Blade:2.23 mm-H2O (one fan) |
| Air Flow |
Standard Fan Blade:58.13 CFM (one fan) Reverse Fan Blade:56.15CFM (one fan) |
| Noise |
Standard Fan Blade:30 dB-A (one fan) Reverse Fan Blade:32 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25℃ |
| Included items | Fan x 3, Cable x3, Reverse Fan Blade x 3 |
User Manual
- File Name
- รายละเอียด
- Size
- Version
- Release Date
-
SWAFAN 120/140 EX INFINITY ARGB Sync Manual
- 2026-01-21
