TR200 Snow Micro Chassis
Users can add an optional 6.0" LCD Screen Kit, compatible with AI Forge via TT RGB PLUS 3.0, for easy customization through the TT PlayLink app.
GPU: 365
Power Supply: Up to 258
2 x USB 3.0
1 x HD-Audio
2 × 2.5” SSD
The image is for reference only.

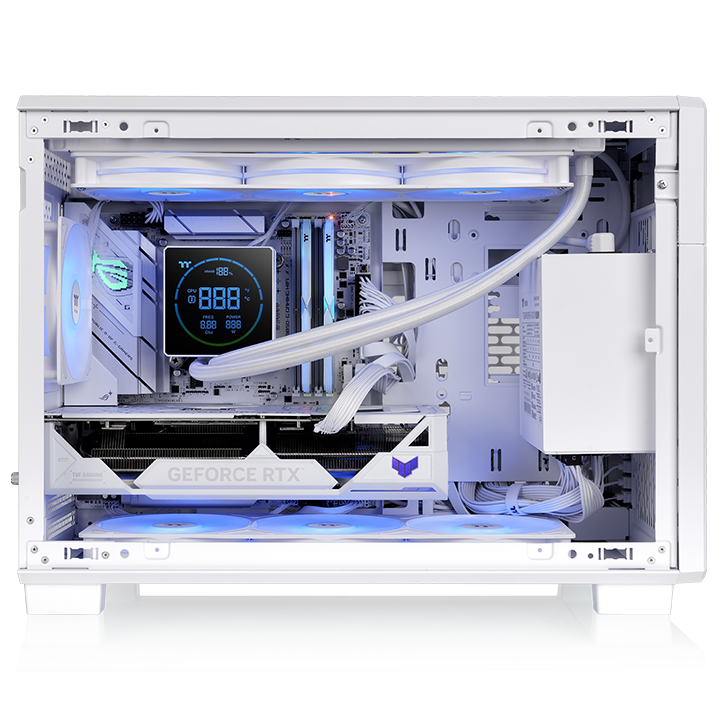

TR200 Snow Micro Chassis
The TR200 Snow Micro Chassis is an Micro-ATX case featuring a 5.25” drive bay for multi-purpose use and supports up to 360mm AIO for maximum cooling efficiency. An optional 6” LCD Screen Kit is available for enhanced visuals. Up to seven 120mm fans, and it supports up to 360mm radiator, providing flexible options for cooling solutions.
The image is for reference only.

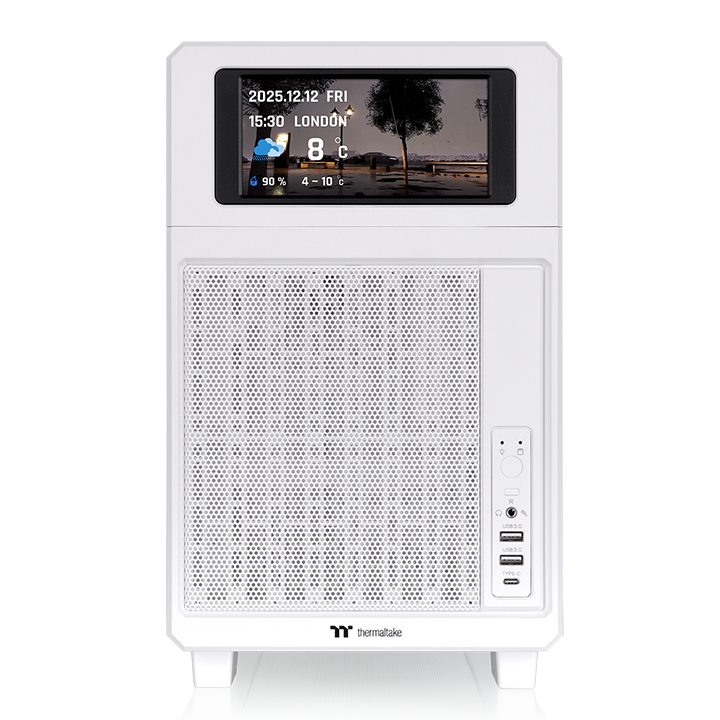

Visually Pleasing, Totally Interactive
Maximize your TR200 Snow Micro Chassis visual effects by upgrading it with our LCD Screen Kit.
The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.
LEARN MORE ABOUT LCD SCREEN KIT
The image is for reference only.
Personalize Your LCD Display
Through TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.
The image is for reference only.
Unleash Limitless Creativity
with AI Forge
Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.
Note: AI Forge integrates with OpenAI services. An OpenAI account setup and payment are required to activate this function. According to OpenAI's pricing standard as of August 2025, the average cost per image generation is about USD 0.04.
The video is for reference only.

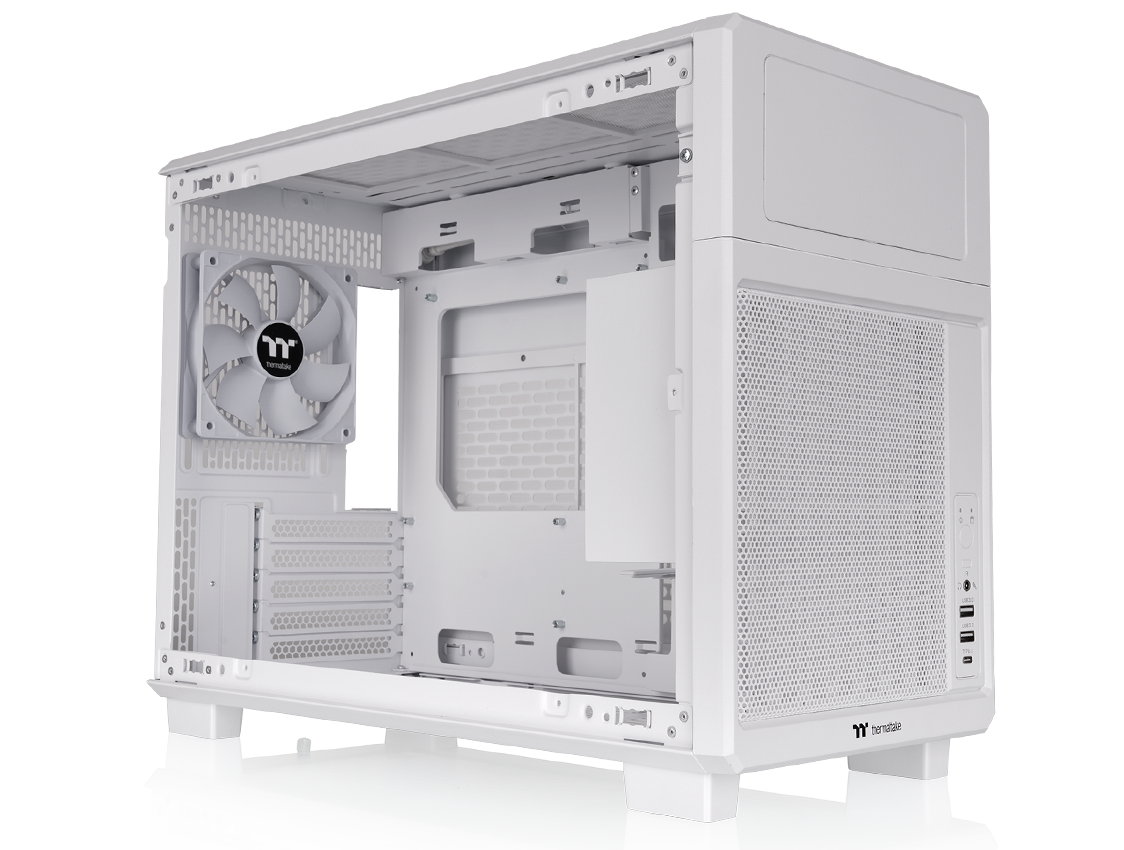

Enhanced Dust Protection
Filters on the top, bottom, and side panels keep your system clean.
The image is for reference only.

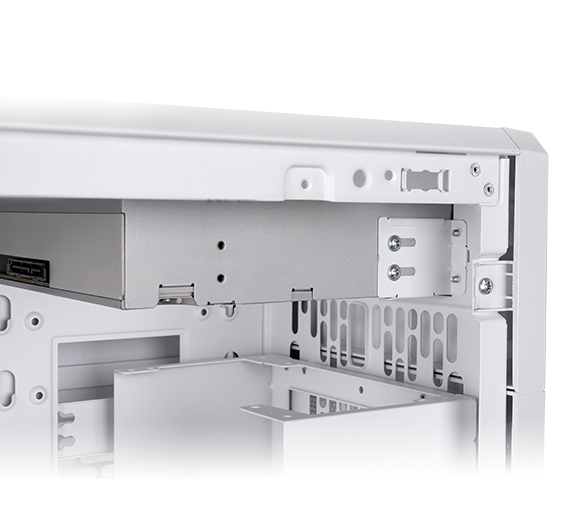

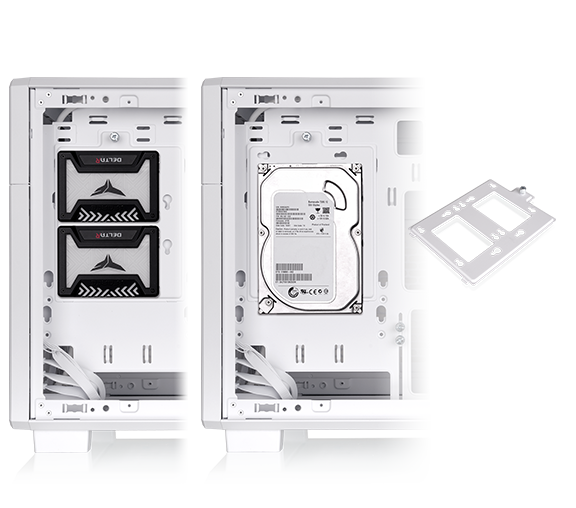

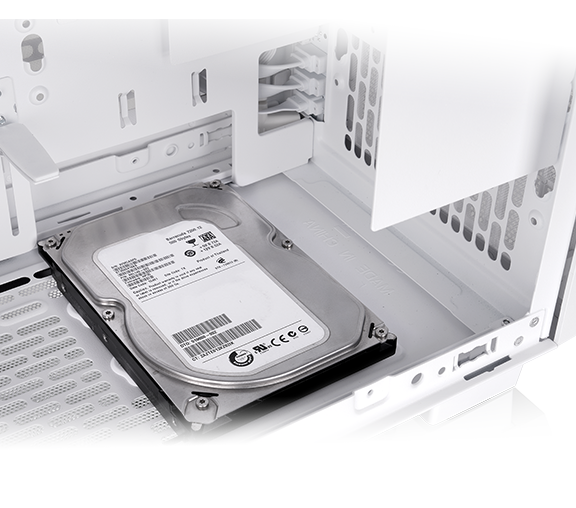

Storage Support
Supporting up to two 3.5” HDDs and one 5.25” drive bay, or one 3.5” HDD, two 2.5” SSDs, and one 5.25” drive bay.
The image is for reference only.

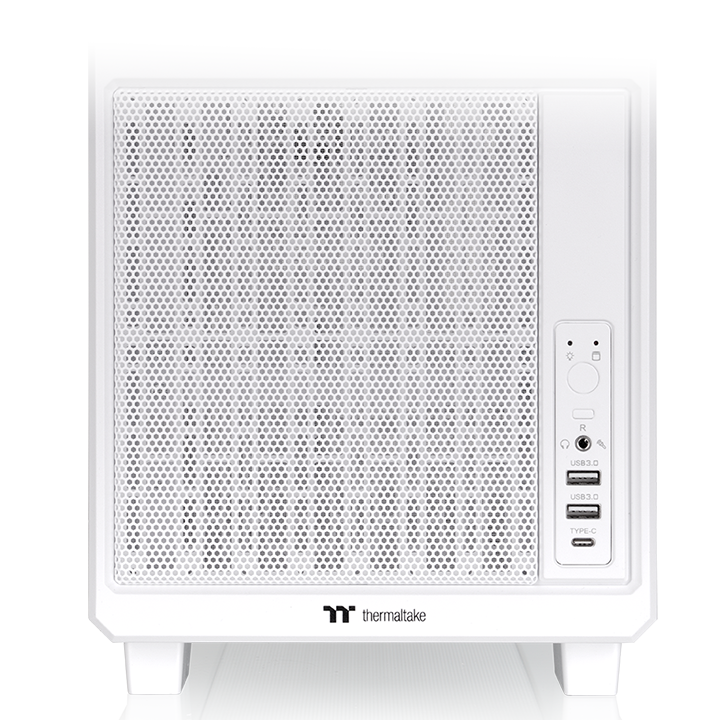

Handy I/O Ports
- Power Button
- Reset Button
- HD Audio
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
The image is for reference only.

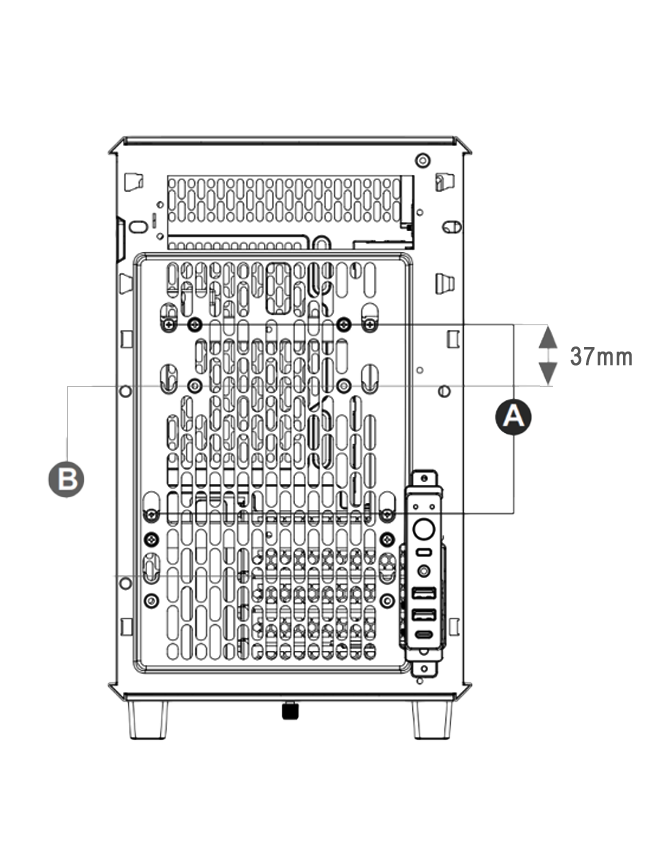

PSU Installation Compatibility
Supports Mini-ITX and Micro-ATX motherboards; power supply can be installed at different mounting positions inside the case.
Power supply rack adjustments : Position A and B
The image is for reference only.

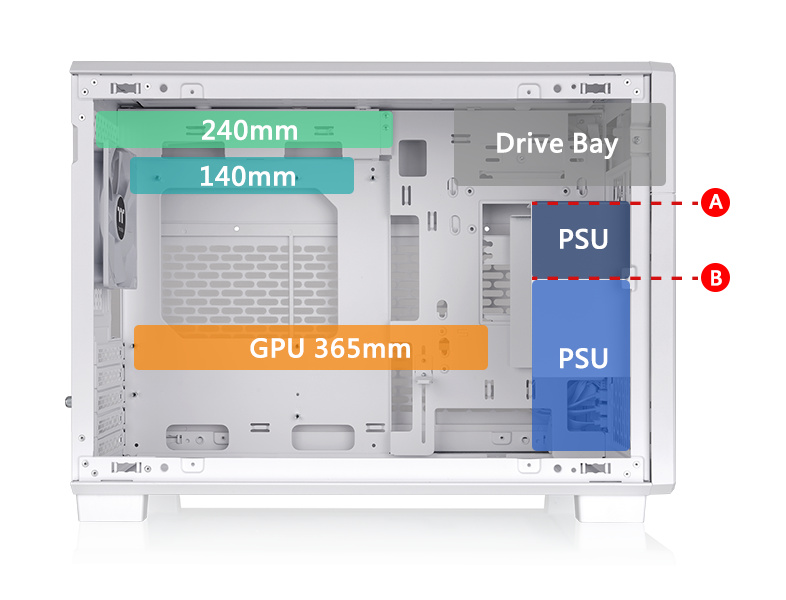

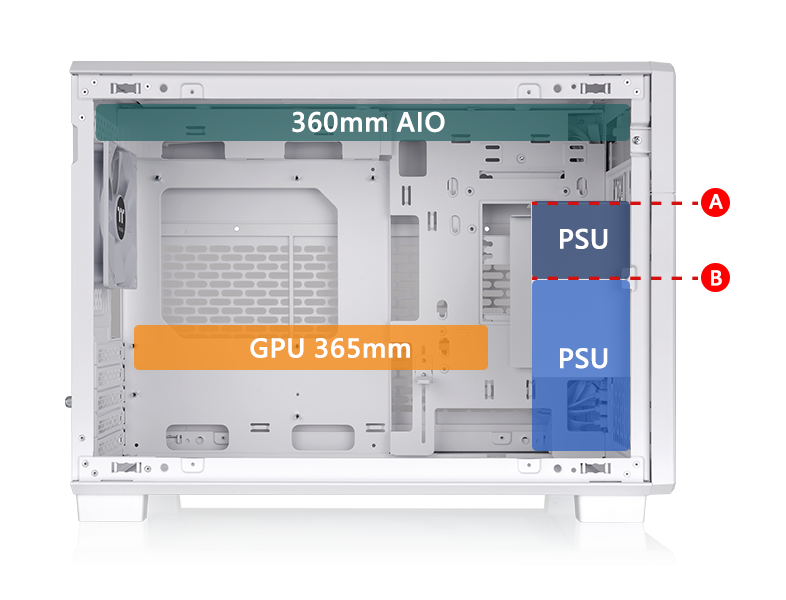

Hardware Clearance Scenario
Max Radiator Support
Supports up to 360mm AIO radiator
- Max GPU Support
Front-mounted PSU at position A or B: 365mm
The image is for reference only.
Max Radiator Support
Top radiator support is limited to 1 x 240
mm
or 1 x 140 mm
- Front-mounted PSU at position A or B
The image is for reference only.
Fan Compatibility List
| 120mm | 140mm | |
|---|---|---|
| Top | 3 | 2 |
| Rear | 1 | - |
| Bottom | 3 | - |

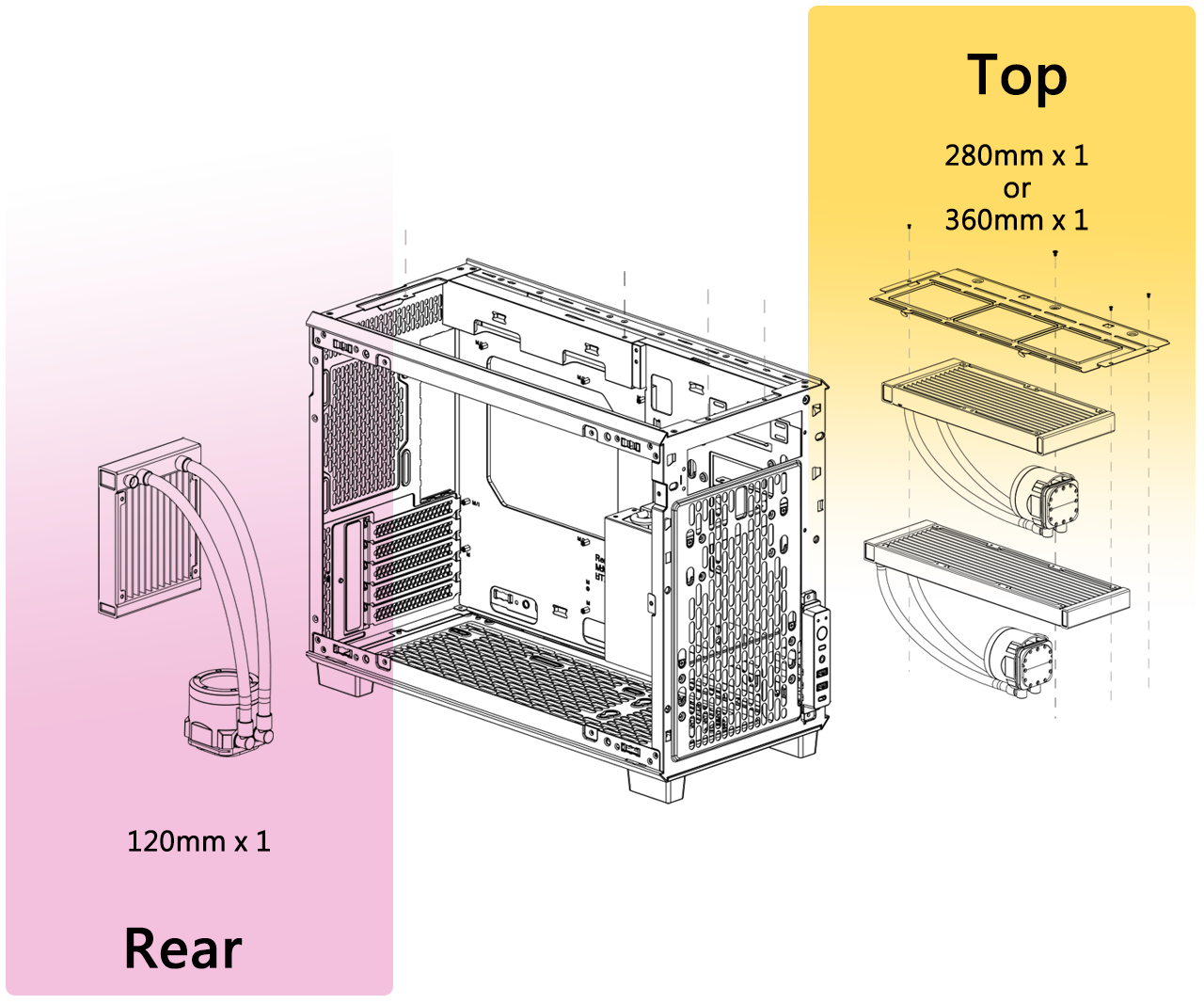

All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | |
|---|---|---|---|---|---|
| Top | |||||
| Rear | - | - | - | - |
| P/N | CA-11L-00S6NN-00 |
|---|---|
| ซี่รี่ส์ | TR Series |
| Case Type | Micro Case |
| Dimension (H x W x D) |
364 x 220 x 494 mm (14.33 x 8.66 x 19.45 inch) |
| Side Panel | Steel |
| Material | SPCC |
| Cooling System |
Rear(exhaust): 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA) x 1 |
| Drive Bays | 2 x 3.5", 1 x 5.25" or, 2 x 2.5", 1 x 3.5, 1 x 5.25" |
| Drive Bays -Accessible -Hidden |
5 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Top: 3 x 120mm,2x 120mm ,1x 120mm 2 x 140mm,1 x 140mm Rear: 1 x 120mm Bottom: 3x 120mm,2x 120mm ,1x 120mm |
| Radiator Support |
Top(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear(AIO) : 1 x 120mm |
| Clearance |
CPU cooler height limitation: 175mm VGA length limitation: 365mm PSU length limitation: 258mm |
User Manual
- File Name
- รายละเอียด
- Size
- Version
- Release Date
-
TR 200 Manual
- 2026-02-24
