XRP-L1 Loadcell Pedals Set
The throttle offers adjustable pedal throw and spring preload, delivering smooth, accurate input through a 16-bit Hall sensor, self-lubricating nylon sleeve, and precision ball bearings. On the brake side, a 200 kg load cell combined with interchangeable springs and rubber dampers provides highly tunable resistance and realistic braking feedback.
With compact, lightweight construction, adjustable pedal angles in 5° increments, and easy-to-mount stainless steel brackets, the XRP-L1 delivers a refined, customizable driving experience designed to elevate competitive sim racing performance.
XRP-L1 LOADCELL PEDAL SET
You Can Trust. ”
Authentic Racing Pedal Control.

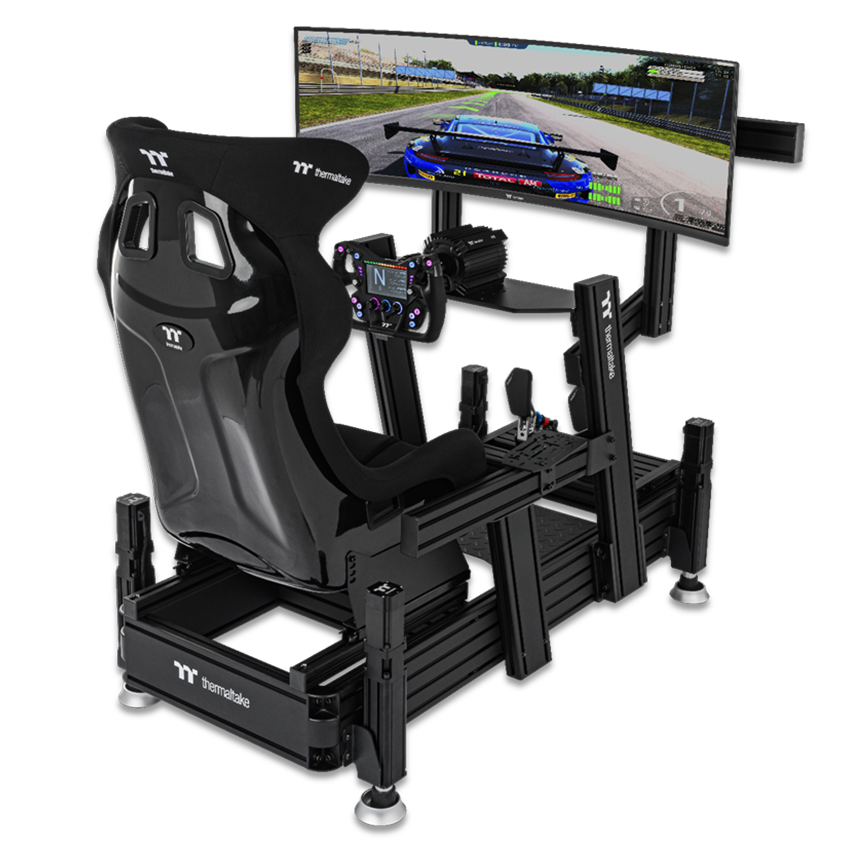

Thermaltake
Sim Racing System.
The XRP-L1 Loadcell Pedals Set is fully compatible with the Thermaltake Sim Racing System, delivering precise throttle and braking control, highly adjustable pedal feel, and a performance-driven racing experience for competitive sim racers.
Thermaltake Sim RacingItalian Craftsmanship
Born for The Podium.
Proudly made in Italy, each component is hand-assembled using premium materials to ensure exceptional precision, consistent performance, and uncompromising quality—engineered for drivers who demand excellence in every detail.
Engineered to Stay Rigid.
Featuring a lightweight carbon fiber throttle and brake plate, the XRP-L1 delivers fast pedal response, enhanced grip, and improved foot comfort for long racing sessions.
Carbon Fiber
Pedal Plate
CNC-machined
Aluminum Structure
FEM Optimized
Structure
Flex-free
Platform
Precision Braking
Fully in Your Command.
Equipped with a 200 kg load cell and 16-bit resolution, the brake pedal delivers highly accurate, pressure-based braking with precise feedback. Multiple springs and rubber dampers allow fine-tuned pedal resistance to match individual driving preferences.

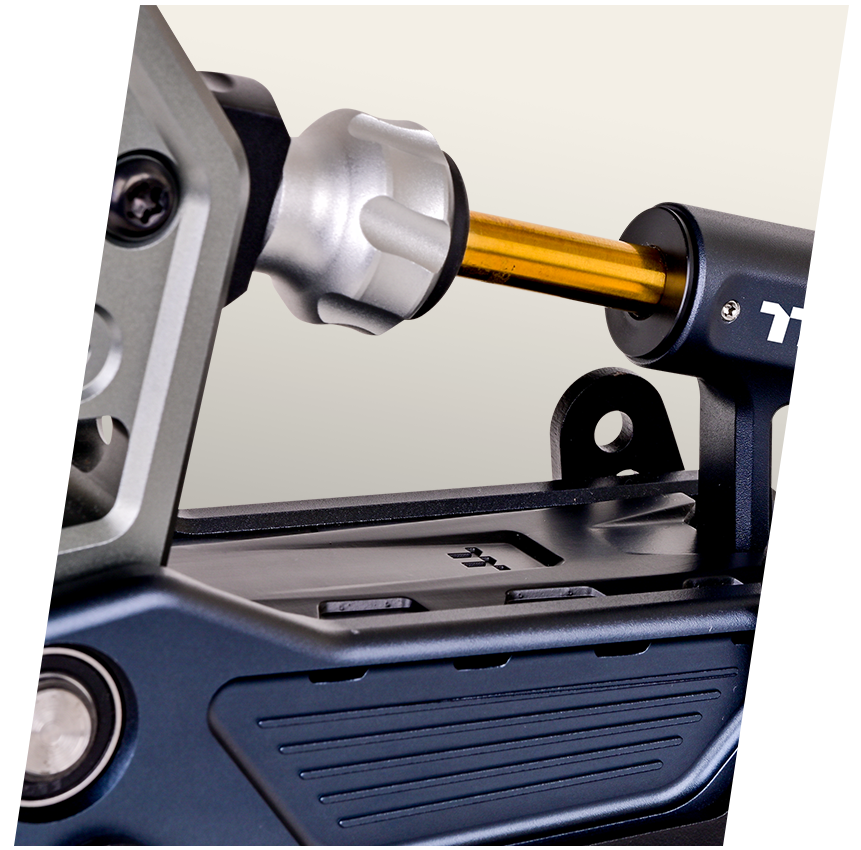

Preload Ring
Elements
Pedal Throw
Your Pedals.
Your Perfect Feel.
The throttle features adjustable pedal throw, while the brake offers preload tuning on both the main pedal and compression elements. These adjustments provide precise control and a fully customizable pedal response.

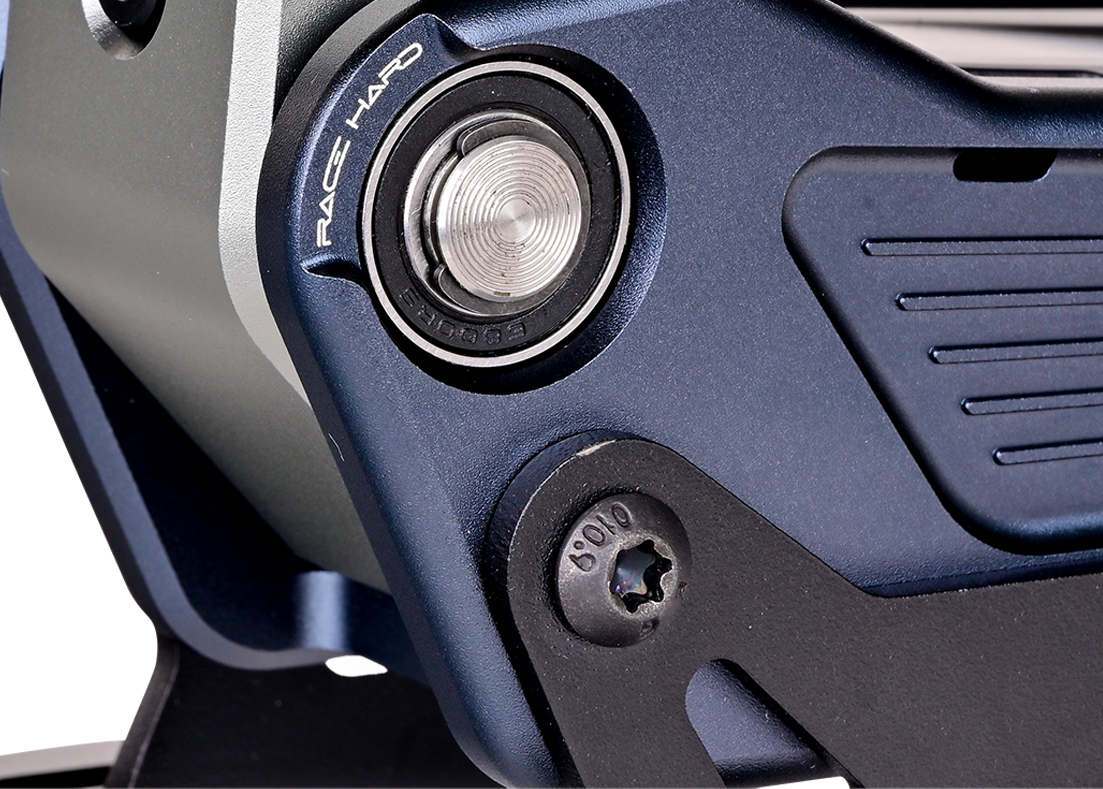

Ball Bearings
Build for Silky-Smooth Control
Precision-machined main shafts with wear-resistant plating, self-lubricating nylon sleeves, and press-fit ball bearings ensure exceptionally smooth pedal movement, long-lasting durability, and consistent performance.
Pedal Angles. (5° increments)
Pedal Heights. (5 centimeters)
Brackets. (10 Minutes)
Connection.
Designed to Fit Every Setup.
Featuring a compact, lightweight design, adjustable pedal angles in 5° increments, stainless steel mounting brackets, and a modern USB-C connection, the XRP-L1 integrates seamlessly into a wide range of sim racing setups.
Customizable Controls
By Thermaltake Software.
By connecting the XRP-L1 to the Thermaltake software, you can fully
customize all steering wheel parameters to match your driving preferences.
Recommended Measurements
| P/N | GPL-XRP-SL2ABB-01 |
|---|---|
| Product Category | Racing Pedal Set |
| PEDAL BODY MATERIAL | CNC Aluminum Alloy |
| SENSOR RESOLUTION | 16 Bit (65536) |
| USB CONNECTION | PC |
| THROTTLE SENSOR | Hall Sensor |
| spec_BRAKE SENSOR | Loadcell Sensor |
| LOADCELL SENSOR RANGE | 0 - 200KG |
| PEDAL ANGLE ADJUSTMENT | 5° Increments |
| FACEPLATE MATERIAL | Carbon Fiber |
| BRAKE ADJUSTMENT |
One spring and three rubber block options with infinite adjustment |
| PEDAL CURVE ADJUSTMENT |
Adjustable |
| REAL-TIME PEDAL OUTPUT DISPLAY |
Adjustable |
| PEDAL PRESSURE ENGAGEMENT POINT |
Adjustable |
